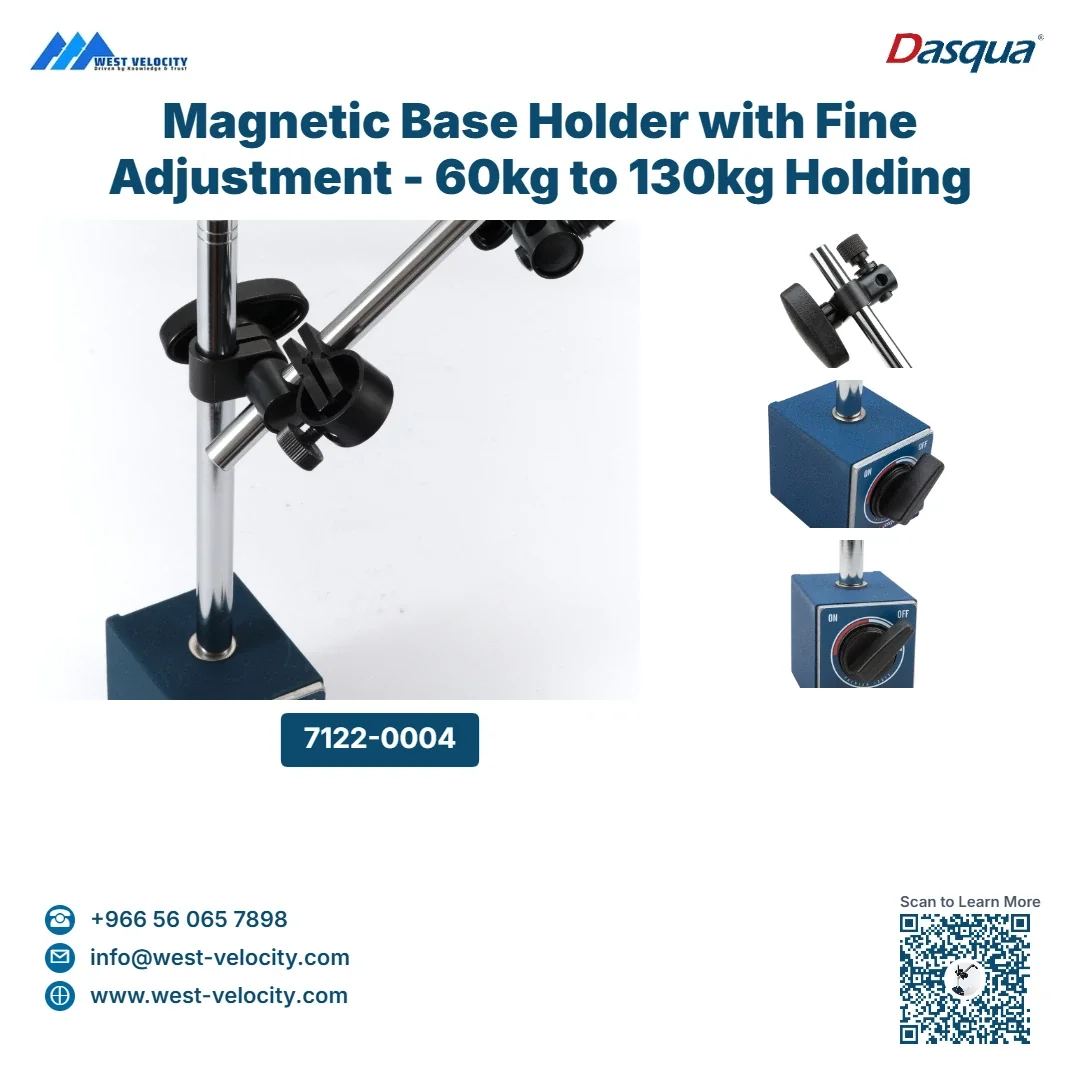

Magnetic Base Holder with Fine Adjustment - 60kg to 130kg Holding Power

Name: Magnetic Base Holder with Fine Adjustment - 60kg to 130kg Holding Power
Brand: Dasqua
SKU: 7122-0004
Availability: InStock

Brand: Dasqua

SKU: 7122-0004

Price on Request

Available in Saudi Arabia Delivery Time: : 2-3 weeks

Wishlist

Facebook Twitter LinkedIn WhatsApp

Chat on WhatsApp

Product Overview

A high-precision Magnetic Base with Fine Adjustment designed for secure positioning of dial indicators and test indicators. Featuring a powerful ferrite permanent magnet and a $150^\circ$ V-grooved base, it ensures stability on both flat and cylindrical surfaces for industrial metrology tasks.

Product Information

SKU 7122-0004

Category Measuring and Layout Tool

Brand Dasqua

Lead Time Delivery Time:
2-3 weeks

Specifications

Holding Power 60.00 - 130.00 kg

Key Features

Explore the outstanding features of this product

150° V-Grooved Base for Cylindrical Mounting

Allows for stable mounting on cylindrical pipes, shafts, and flat surfaces for precise industrial metrology tasks.

High-Force Ferrite Magnet up to 130kg Holding Power

Provides superior holding power exceeding standard calibration values, ensuring secure positioning of dial and test indicators.

Integrated Heat-Treated Fine Adjustment Mechanism

Enables precise, micro-movements of the indicator with a highly responsive and durable fine-adjustment device.

Universal Clamping for Multiple Indicator Sizes

Accommodates various dial and test indicator stem sizes with multiple hole diameters (4mm, 8mm, 3/8") for compatibility.

User-Friendly Magnetic Engagement Switch

Simple On/Off toggle allows for effortless magnetic engagement and release, enabling easy repositioning.

Material Composition

Detailed breakdown of materials used in this product

Carbon Steel

Not specified

Used for the adjusters after heat treatment for wear resistance.

Cast Iron

Not specified

Used as the housing material for the base to provide durability and strength.

Electroplated Steel

Not specified

Used for the poles to provide corrosion resistance and rigidity.

Ferrite Permanent Magnet

Not specified

Used in the base to provide superior holding power up to 130kg.

Composition Overview

Carbon Steel

Not specified

Cast Iron

Not specified

Electroplated Steel

Not specified

Ferrite Permanent Magnet

Not specified

Product Applications

Discover the various ways this product can be utilized

Lab Testing

General-purpose precision positioning in metrology labs.

Machining

Setting up workpieces on lathes, milling machines, or grinders.

Maintenance

Checking shaft alignment and motor vibrations.

Quality Control

Holding dial indicators for run-out, flatness, and parallelism checks.

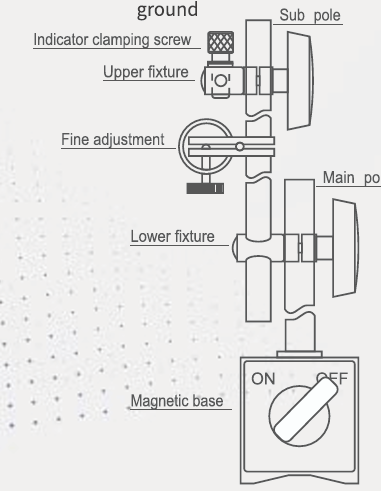

Variations

Code	Holding Power	Base	Main Pole	Sub Pole	Dia. of Clam Hold	weight
7122-0004	60kg	60x50x55	ø12x176	ø10x150	ø6/ø8	1.5kg
7122-0005	80kg	60x50x55	ø12x176	ø10x150	ø6/ø8	1.5kg
7122-0010	100kg	73x50x55	ø16x255	ø14x165	ø6/ø8	2.3kg
7122-0015	130kg	117x50x55	ø20x355	ø14x210	ø6/ø8	3.7kg
7123-1004	60kg	60x50x55	ø12x176	ø10x150	ø4/ø8/3/8"	1.5kg
7123-1005	80kg	60x50x55	ø12x176	ø10x150	ø4/ø8/3/8"	1.5kg
7123-1010	100kg	73x50x55	ø16x255	ø14x165	ø4/ø8/3/8"	2.3kg
7123-1015	130kg	117x50x55	ø20x355	ø14x210	ø4/ø8/3/8"	3.7kg
