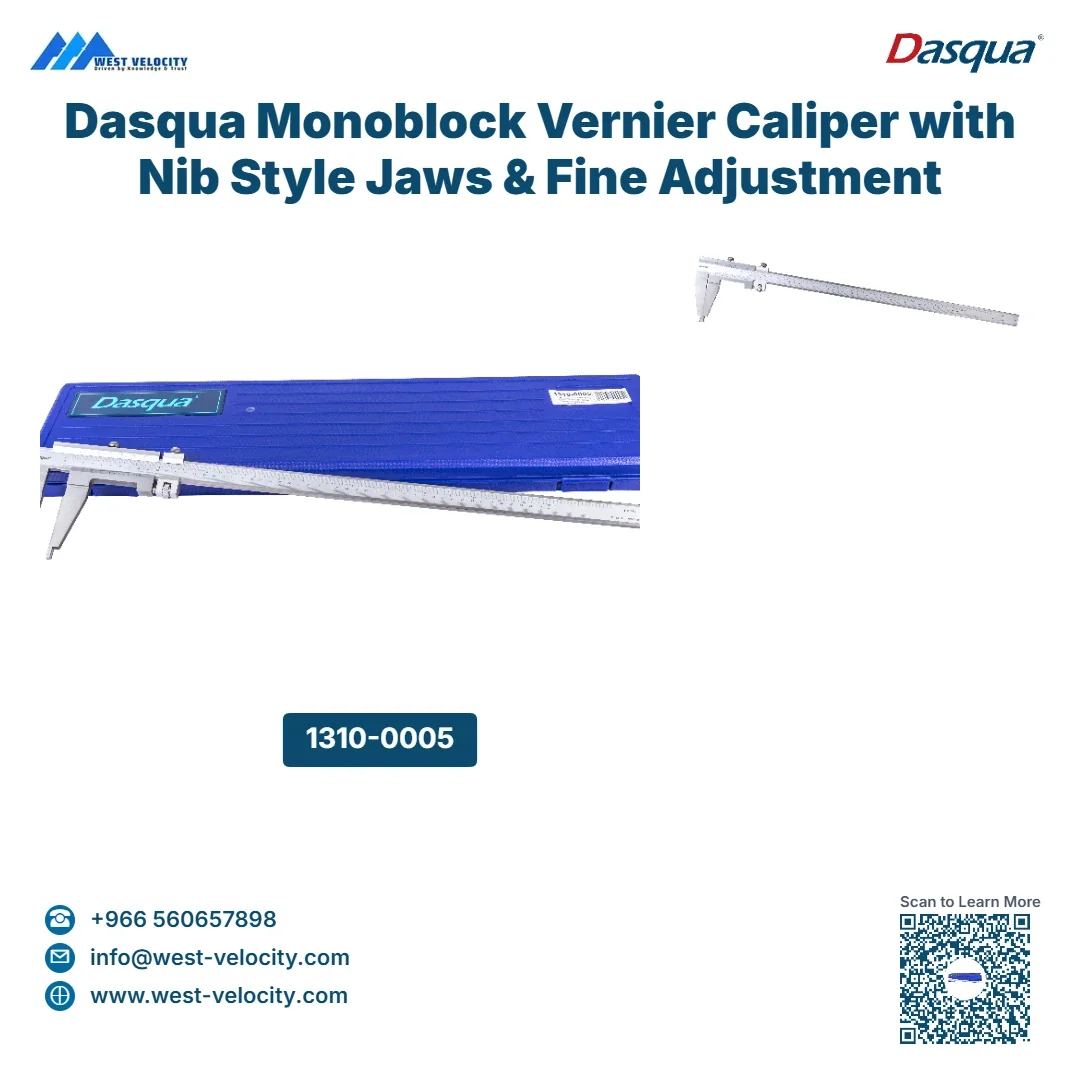

Dasqua Monoblock Vernier Caliper with Nib Style Jaws & Fine Adjustment

Name: Dasqua Monoblock Vernier Caliper with Nib Style Jaws & Fine Adjustment
Brand: Dasqua
SKU: 1310-0005
Availability: InStock

Brand: Dasqua

SKU: 1310-0005

Price on Request

Available in Saudi Arabia Delivery Time: : 2-3 weeks

Wishlist

Facebook Twitter LinkedIn WhatsApp

Chat on WhatsApp

Product Overview

A professional-grade Monoblock Vernier Caliper featuring precision nib-style jaws for accurate internal and external measurements. Designed by Dasqua with a hardened stainless steel body and satin chrome finish, this tool offers a dual-scale range up to 2000mm (80") with a fine adjustment carriage for high-precision engineering tasks.

Product Information

SKU 1310-0005

Category Measuring and Layout Tool

Brand Dasqua

Lead Time Delivery Time:
2-3 weeks

Specifications

Measuring Range 500.00 mm

Resolution Accuracy 0.05 mm

Key Features

Explore the outstanding features of this product

Fine Adjustment Thumb-Roll Carriage

Includes a thumb-roll screw for precise micro-movements and accurate measurements during engineering tasks.

High-Contrast Laser-Etched Scale

Distinct lines and figures etched against a satin chrome non-glare finish ensure readability even in high-light industrial environments.

Lapped Measuring Faces

Jaws are precision lapped to ensure absolute flatness and parallelism for accurate measurements.

Monoblock Stainless Steel Construction

Crafted from a single piece of hardened stainless steel for superior rigidity and lasting alignment, eliminating play found in multi-piece designs.

Precision Nib-Style Jaws

Engineered with precision-ground nib tips for specialized internal diameter, groove, and external dimensioning.

Material Composition

Detailed breakdown of materials used in this product

Hardened Stainless Steel

Not specified

Used for the primary monoblock body construction, providing superior rigidity, lasting alignment, and wear resistance.

Satin Chrome plating

Not specified

Applied as a non-glare finish on the measurement scale for improved readability in high-light environments.

Composition Overview

Hardened Stainless Steel

Not specified

Satin Chrome plating

Not specified

Product Applications

Discover the various ways this product can be utilized

Aerospace Industry

Precision dimensioning of structural components.

Automotive Engineering

Quality inspection of engine blocks and chassis components.

Heavy Machinery Manufacturing

Measuring large diameter shafts and bores.

Industrial Maintenance

On-site measurement for replacement part fabrication.

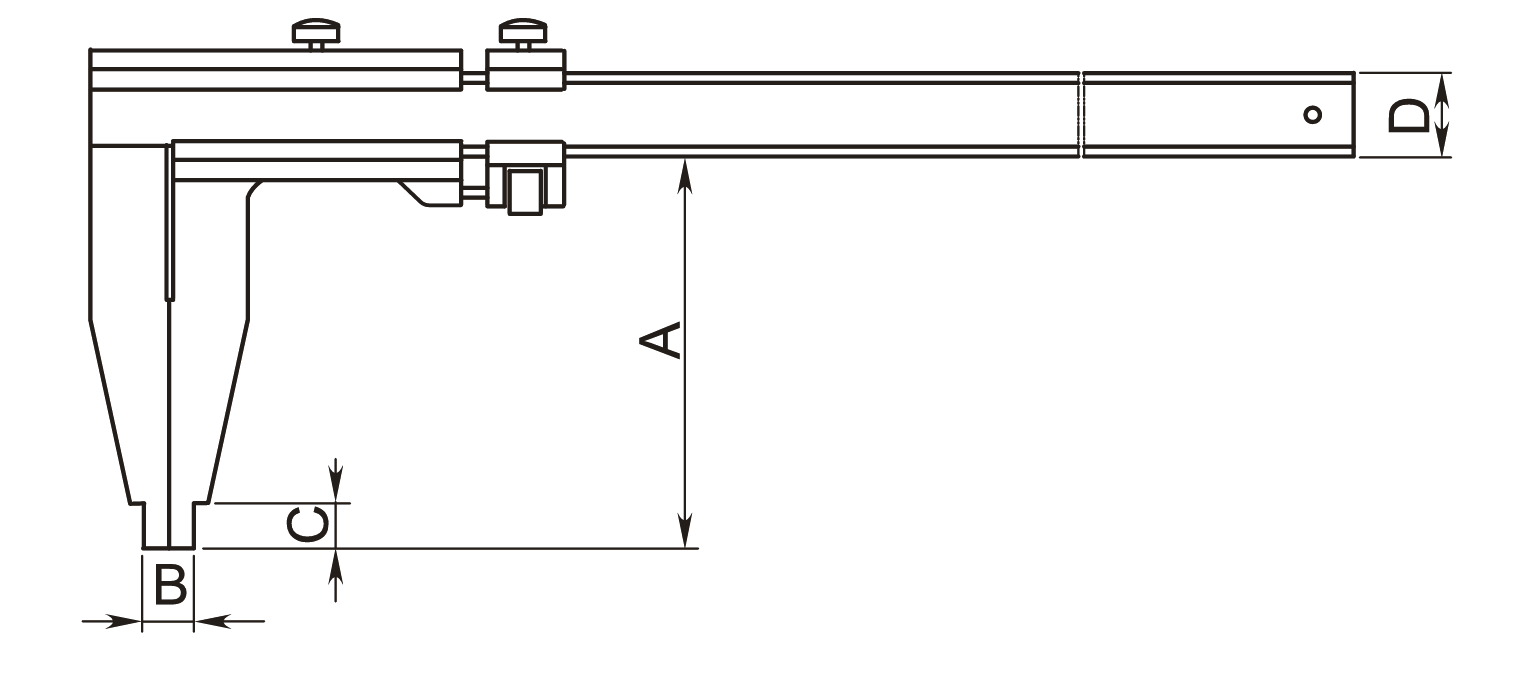

Different Models

Code	Range	Graduation	A	B	C	D	Accuracy
1310-0005	0-500/0-20"	0.02/0.001"	100	10	12	25	±0.05
1310-0006	0-500/0-20"	0.02/0.001"	150	10	12	32	±0.05
1310-0010	0-600/0-24"	0.02/0.001"	100	10	12	25	±0.05
1310-0011	0-600/0-24"	0.02/0.001"	150	10	12	32	±0.05
1310-0015	0-1000/0-40"	0.02/0.001"	125	20	18	32	±0.07
1310-0016	0-1000/0-40"	0.02/0.001"	200	20	18	32	±0.07
1310-0020	0-1500/0-60"	0.02/0.001"	150	20/30	20	32/41.5	±0.11
1310-0025	0-2000/0-80"	0.02/0.001"	200	20/30	20	52	±0.14
